Why is Aluminum Nitride (AlN) So Expensive?

In Google searches and industry inquiries, whether looking for aln substrate, aluminum nitride substrate, or aluminum nitride ceramic, one consistent trend emerges: this material carries a distinct "premium" label. A palm-sized high-purity substrate often costs hundreds of yuan (RMB)—equivalent to dozens or over a hundred US dollars. This price tag is not the result of hype, but rather stems from three core barriers.

1. Raw Materials: Purity is the "Lifeline" of Thermal Conductivity

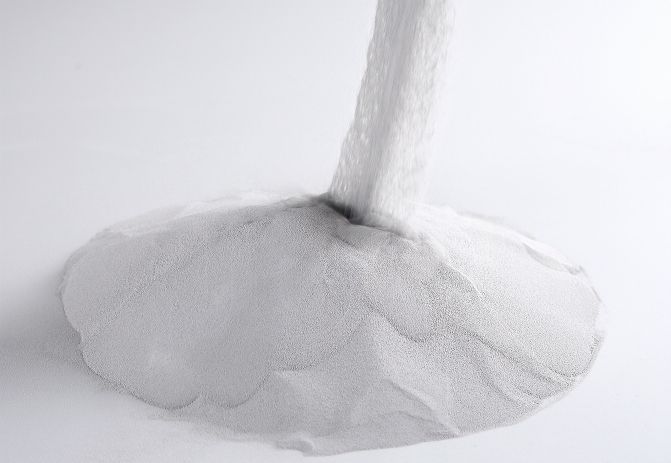

High-end AlN powder must achieve 4N purity (99.99%) with oxygen content strictly controlled below 0.1%. Oxygen atoms scatter phonons, acting as the "number one killer" of aluminum nitride thermal conductivity (often searched as thermal conductivity AlN). The dominant carbothermal reduction method requires ultra-high temperatures (1600°C–1800°C) and a rigorously controlled nitrogen atmosphere, leading to significant equipment wear and energy consumption. High-purity powder costs over ten times more than standard alumina, accounting for a substantial portion of the final product cost.

2. Manufacturing: The Dual Barriers of Sintering and Machining

Synthesizing high-density, high-thermal-conductivity ceramics from high-purity powder demands specialized high-temperature nitriding furnaces operating above 1800°C, along with expensive rare-earth sintering aids. Post-sintering, AlN exhibits a Mohs hardness of 8–9, making precision cutting and grinding prone to micro-cracks and chipping. Machining costs often exceed 50% of total production expenses, with yield control presenting extreme technical challenges.

3. Market Dynamics: Rigid Demand Amid Supply-Demand Imbalance

With the explosion of AI computing power, 1.6T optical modules, and automotive-grade SiC power modules, high-end AlN has rapidly shifted from an "optional heat dissipation solution" to a "critical cornerstone." Global high-end capacity has long been dominated by a few technologically advanced players with cautious expansion plans. Slow supply growth coupled with surging demand naturally sustains high prices.

4. The "Performance Premium": Irreplaceability

Despite the high cost, in ultra-high-power-density scenarios such as 5G base stations, AlN heater systems, and high-speed rail traction, where thermal management becomes the bottleneck, only high-pure AlN offers the ideal combination of "high thermal conductivity, high electrical insulation, and a silicon-matched coefficient of thermal expansion." It is not merely a heat sink, but a "critical barrier" ensuring device performance and longevity.

A Note on "Low-Cost" AlN Ceramics

Keen observers may notice aluminum nitride ceramic pieces priced at just a few dollars online. These differ fundamentally from the high-end substrates discussed above. Typically manufactured from lower-purity powders (oxygen content >1%), they exhibit thermal conductivity in the range of 50–120 W/(m·K)—far below the 170+ W/(m·K) required for advanced electronics. Often supplied as unpolished "as-fired" blanks or miniature spacers, these products are generally suited for educational experiments or non-critical, low-power applications. For high-reliability systems, investing in premium-grade AlN is not optional—it is essential.

Xiamen Juci manufactures High Purity AlN Powder ,  AlN Granule,  Thermal Conductive Filler and AlN Ceramics . Please contact us if you have any requirements.
